Product Introduction
Specification
| Global (IECEx) | IECEx PCET 24.0030X |
| Gas and Dust | Ex db llB+H2 T口'Gb Ex db fia Ga]lB+H2 Tㄩ"Gb Ex db [ib Gb] lB+H T口"Gb Ex tb llC T’Db |
| Europe (ATEX) | applied for |
| Gas and Dust | ll 2 G Ex db llB+H2 T口'Gb ll 2 G Ex db [ia Ga] llB+H2 T口"Gb ll2 G Ex db [ib Gb] llB+H2 T口"Gb II 2 D Ex tb llIC T口"Db 'See table for max. dissipated power |
| Certificates | IECEx; ATEX; |
| Conformity to standards | EN 60079-0, EN 60079-1, EN 60079-11, EN 60079-31 IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 60079-31 |
| Degree of protection | IP66 |
| Ambient temperature | -60℃(-40℃)≤Ta≤+40(+60℃) |
Data
| Material | Copper-free Aluminium Alloy, powder coated surface,Window grey (RAL7040) |
| Dimensions | As per design |
| Rated voltage | MAX. 1000V AC 50/60Hz; MAX. 1500V DC |
| Rated current | Max.2000A |
| Internal&external earthing | M8/M8 |
| Cable entries | Standard MX1.5 plug |
Download

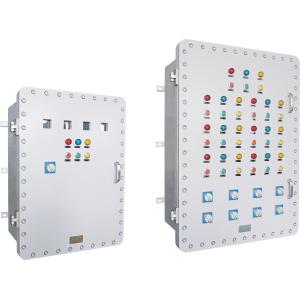

HRMD95 Series Series-Proof Distribution Panels
(Download here:HRMD95 Series Explosion-proof Distribution Panels.pdf.)
