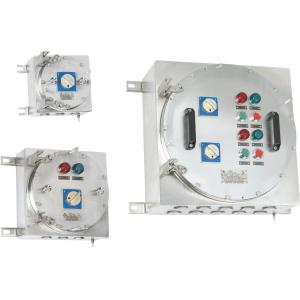

Flameproof enclosure :which can be used as feeddistribution equipment in control and distribution system (suchas distribution box, switch box of main circuit ,control box,terminal box or motor starting box etc.)

Enclosure :304 stainless steel, 316L stainless steel and Q235.

Equipped with specialized hinge structure :which can preventthe flameproof joints from damage when opening and closingthe box, and greatly prolong the service life of box.

Contact Now

Add to Cart

View Product Description

Product Introduction

Specification

Global (IECEx)	IECEx PCET 24.0027X
Gas and Dust	Ex db IlC T6...T4¹)Gb Ex db [ia Ga] llC T6...T4¹⁾Gb Ex db [ib Gb] llC T6...T4¹⁾Gb Ex tb lllC T80℃...T130℃¹⁾Db Ex tb [ia Da] lllC T80℃...T130℃¹⁾Db Ex tb [ib Db] lllC T80℃...T130℃¹⁾Db
Europe (ATEX)	applied for
Gas and Dust	ll 2 G Ex db llB+H2 T口'Gb ll 2 G Ex db [ia Ga] llB+H2 T口"Gb ll2 G Ex db [ib Gb] llB+H2 T口"Gb II 2 G Ex db lIC T6...T4¹⁾ Gb II 2 G Ex db [ia Ga] llC T6...T4¹⁾ Gb II 2 G Ex db [ib Gb] llC T6...T4¹⁾ Gb II 2 D Ex tb IIIC T80℃...T130℃¹⁾Db II 2 D Ex tb [ia Da] lIIC T80℃...T130℃¹⁾Db II 2 D Ex tb [ib Db] llIC T80℃...T130℃¹⁾Db
Certificates	IECEx; ATEX;CU-TR
Conformity to standards	EN 60079-0, EN 60079-1, EN 60079-11, EN 60079-31 IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 60079-31
Degree of protection	IP66
Ambient temperature	-60℃(-40℃)≤Ta≤+40(+60℃),-40℃~+60℃(+40℃)

Data

Material	304 stainless steel, 316L stainless steel and Q235
Dimensions	As per design
Rated voltage	MAX. 1000V AC 50/60Hz; MAX. 1500V DC
Rated current	Max.1000A
Internal&external earthing	M8/M8
Cable entries	Standard MX1.5 plug

Download

HRMD96 Series Explosion-proof Distribution Panels

(Download here:7.HRMD96 Series Explosion-proof Distribution Panels.pdf)

Global (IECEx):IECEx PCET 22.0011X
(Download here:

IECEx PCET 24.0027X Issue No.0.pdf )
